Console Repair for PlayStation and Xbox, Done Locally

A broken HDMI port or a console that keeps shutting off does not mean the system is finished. Stealth Tech Pro repairs PlayStation and Xbox consoles right here in Stevens Point, so you can drop it off with someone nearby instead of mailing it out and waiting to hear back.

We look at the console first, tell you what we actually found, and only move forward once you say go.

What We Repair

HDMI Port Repair

Loose ports, bent pins, a picture that flickers when the cable moves, or no signal at all. We repair the damaged port and put the picture back on your TV.

Overheating and Internal Cleaning

Loud fans, hot cases, overheating warnings and consoles that shut down partway through a game, often caused by dust buildup or another cooling problem.

Thermal Paste Replacement

Dried out paste gets replaced with a phase change material instead, a step up from what most consoles ship with, because it will not dry out or pump away from the chip the same way.

Other Console Problems

Plenty comes in beyond video and cooling: no power, disc drive faults, damaged fans, USB ports and storage. We look at each one and tell you what we find.

PS5 and Xbox HDMI Port Repair in Stevens Point

A damaged HDMI port is one of the most common reasons a console stops putting a picture on the TV. Ports get bent when a cable is stepped on, tripped over, or left plugged in while the console gets moved. Once the pins inside the connector are pushed over or broken, the picture can flicker, cut out when the cable moves, or disappear completely.

Not every console without a picture has a damaged port. If it points somewhere else inside the console, we tell you what we found rather than replacing a part that was never the problem.

When the port is the problem, we handle the repair and test the console on a display before you pick it up. We are an independent local shop and are not affiliated with Sony or Microsoft.

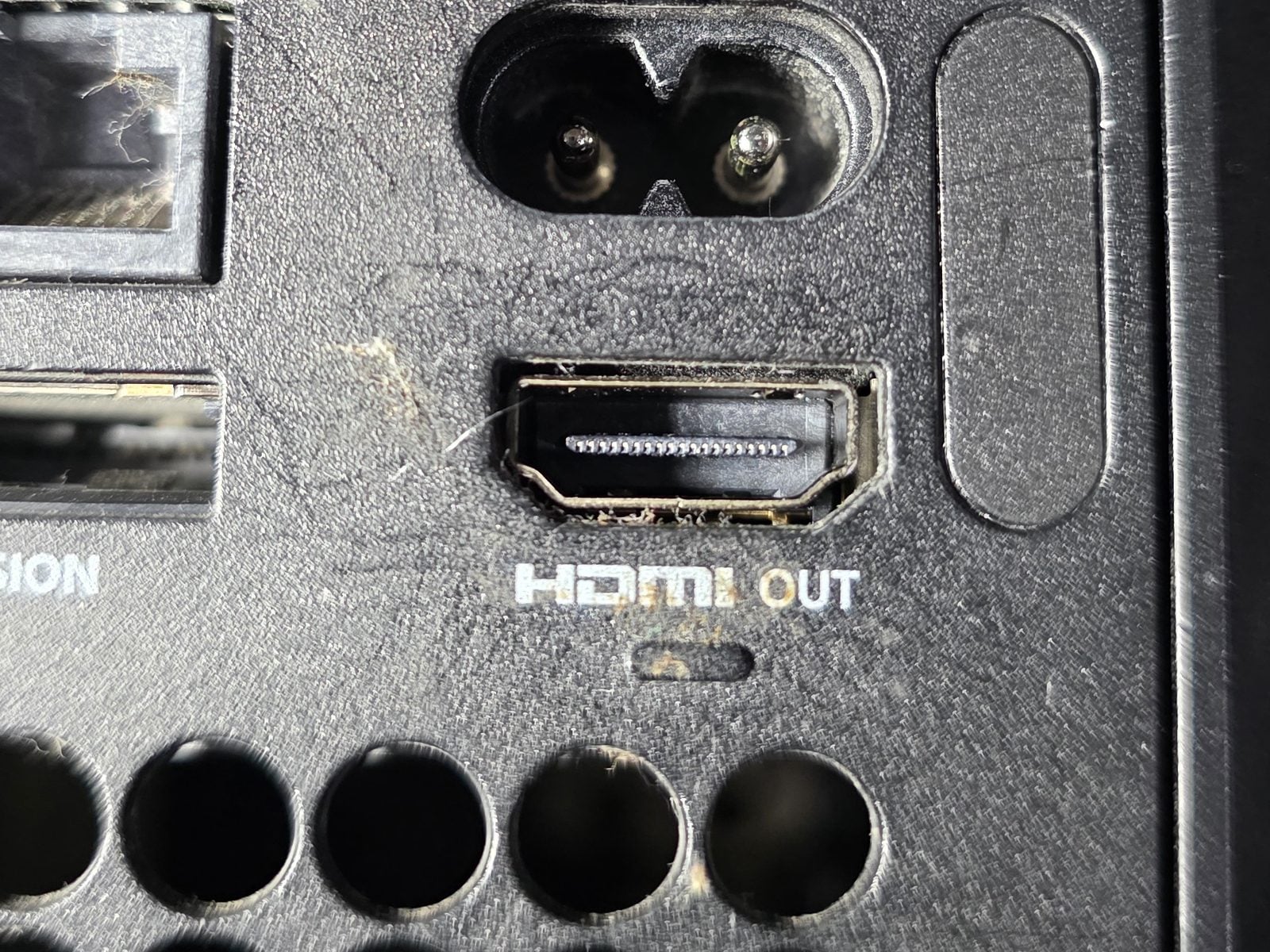

HDMI OUT port on the back of an Xbox Series X console at Stealth Tech Pro in Stevens Point
The HDMI OUT port on an Xbox Series X. This is the connector that takes the strain when a cable gets pulled, stepped on or left plugged in while the console is moved.

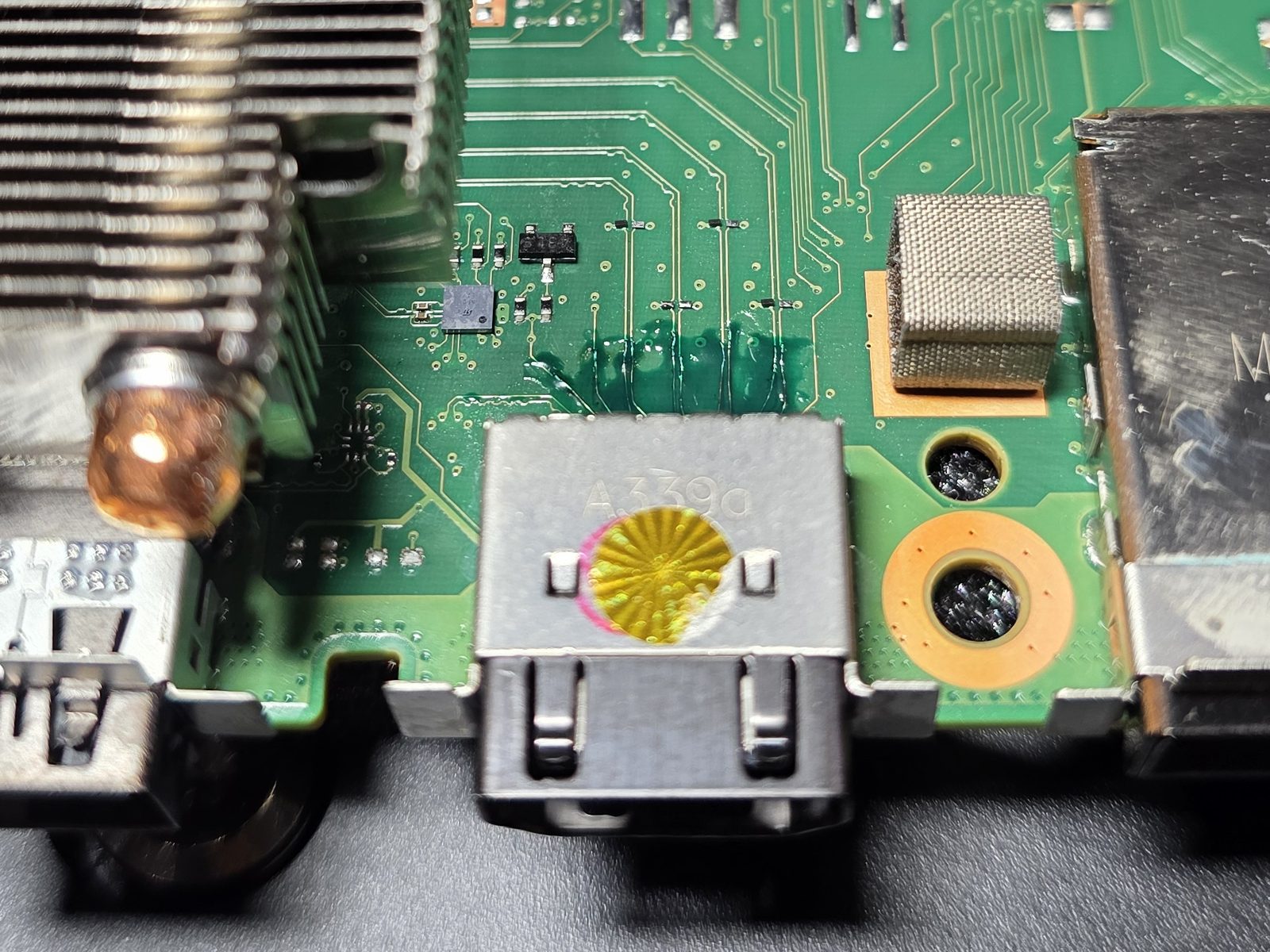

Rebuilt traces behind the HDMI connector on an Xbox Series X board following an HDMI port repair
When a port gets torn off it can take the traces behind it with it. Those have to be rebuilt before a new connector will work, which is part of why two consoles with the same symptom are not the same job.

Symptoms We See Most Often

If your console is doing any of this, it is worth having looked at.

  • No signal on the TV even though the console powers on
  • The HDMI cable feels loose or falls out of the port
  • Bent, pushed over or missing pins inside the port
  • Picture flickers or drops out when the cable gets bumped
  • The fan runs loud all the time
  • The console feels hot or shows an overheating warning
  • The system shuts itself off in the middle of a game
  • Visible dust packed into the vents
  • Disc drive will not take, read or eject a disc

Before and After an Internal Cleaning

Most consoles that run loud or shut off are packed with dust in places you cannot reach from the outside. These are from work done here.

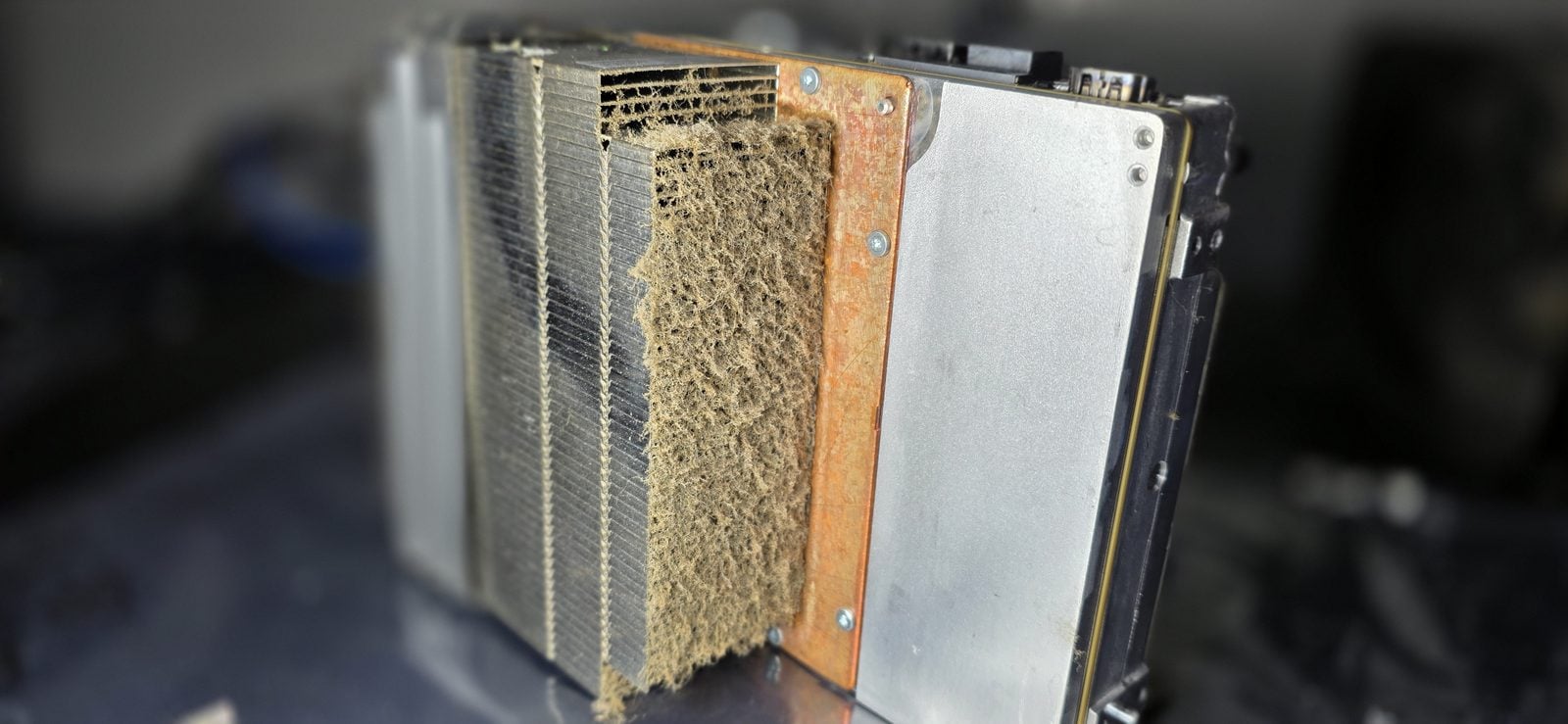

Xbox Series X heatsink packed with dust before an internal cleaning at Stealth Tech Pro in Stevens Point
Before: an Xbox Series X heatsink packed solid with dust, blocking the airflow the console depends on.

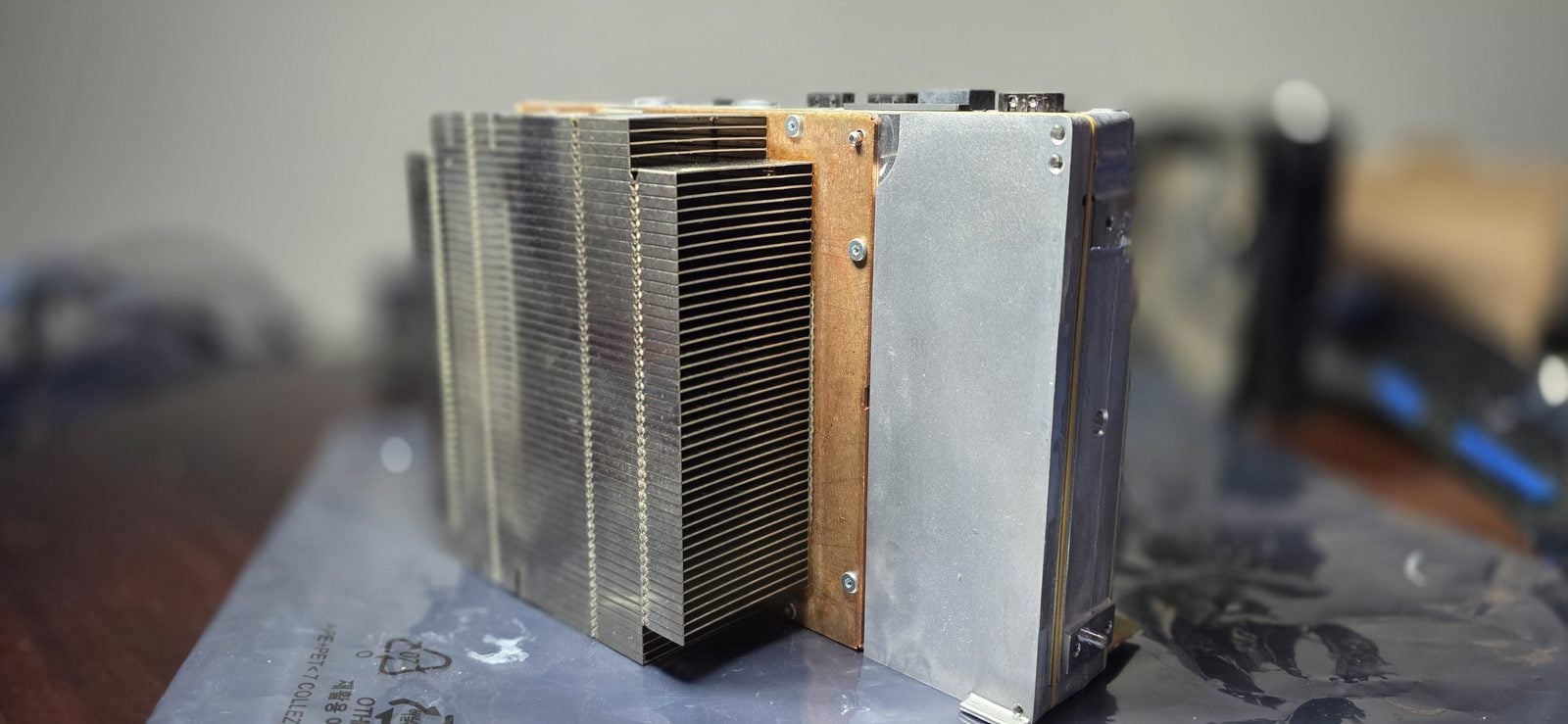

The same Xbox Series X heatsink after a full internal cleaning at Stealth Tech Pro in Stevens Point
After: the same Xbox Series X heatsink cleared out, with air able to move through it again.

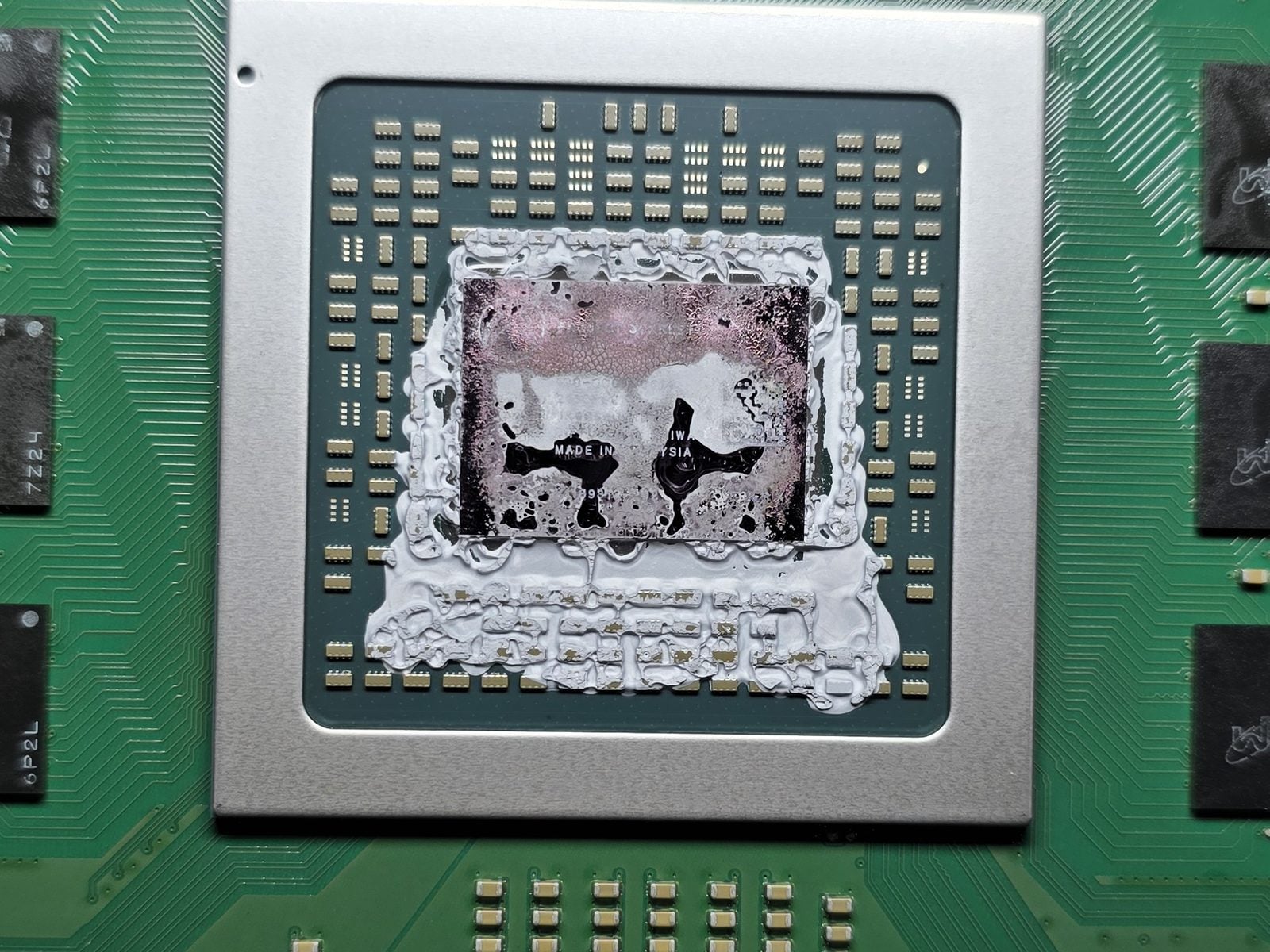

Dried out thermal paste on an Xbox Series X processor, inspected and replaced during thermal service at Stealth Tech Pro
Thermal paste on an Xbox Series X that has dried out and pulled away from the edges of the processor.

Thermal material gets checked while the console is open

Consoles do not all use the same material between the processor and the heatsink. Most use thermal paste. The PS5 ships with liquid metal from the factory, which is why those get looked at case by case instead of being treated like everything else.

Once paste dries out or pushes away from the edges of the chip, heat stops moving into the heatsink and the fan works overtime to make up for it. When we replace it we use a phase change material rather than ordinary paste. It settles into place at operating temperature and does not dry out or pump out the way paste does, so the fix holds instead of coming back in a year.

How the Repair Works

  1. Diagnosis

    We check the console over and work out what we are actually dealing with before anything gets ordered or replaced.

  2. Your approval

    We contact you with what we found and what the repair involves. Nothing moves forward until you approve it.

  3. Repair

    We complete the approved work. If something unexpected turns up along the way, we stop and call you.

  4. Testing and pickup

    The console goes back together and gets tested on a display before we let you know it is ready.

Systems We Work On

PlayStation

  • PlayStation 5
  • PlayStation 5 Slim
  • PlayStation 5 Pro
  • PlayStation 4, PS4 Slim and PS4 Pro
  • PlayStation 3

Xbox

  • Xbox Series X
  • Xbox Series S
  • Xbox One
  • Xbox One S and Xbox One X
  • Xbox 360

Older systems are worth asking about. Parts get harder to find the further back you go, so tell us the exact model and what it is doing and we will give you a straight answer on whether it is something we can take on. If you also have a desktop or laptop giving you trouble, our computer repair service in Stevens Point covers those.

Why People Bring Their Consoles to Stealth Tech Pro

  • You are dealing with a local shop

    We are in Stevens Point and serve the surrounding Central Wisconsin area. No shipping your console across the country and hoping it comes back.

  • You get straight answers

    We tell you what we found in plain language, including when the honest answer is that a repair is not worth doing.

  • Careful handling

    Consoles get taken apart carefully and kept clean while they are open on the bench.

  • Tested before it goes home

    We do not hand back a console we have not powered on, connected to a display and run.

Console Repair Questions

How long does a console repair take?

It depends on the console, how bad the damage is, whether parts have to come in and how full the bench is that week. Turnaround here is fast and local compared to mailing a console out, but we are not going to promise you a number before we have seen it. Once we have diagnosed the system we will give you a realistic timeframe.

How much does an HDMI port repair cost?

We quote the repair after the diagnosis, because the price depends on the console and on what is actually wrong. Two systems with the same symptom can need very different work. Contact us with your console model and what it is doing and we will walk you through it.

How do I know if the HDMI port is really the problem?

A port that feels loose, pins you can see are bent, or a picture that drops out when the cable gets bumped all point that way. But no picture by itself is not proof. The same symptom can come from the cable, the TV input or a chip inside the console, so we confirm the cause before replacing the port.

What should I bring with my console?

Bring the console, its power cable and the HDMI cable you have been using, since the cable itself is sometimes part of the problem. Let us know what the console is doing and when it started. You do not need to bring controllers, games or the stand unless the issue involves them.

Can you look at problems other than HDMI and overheating?

They are worth bringing in. No power, disc drive faults, damaged fans, USB ports and storage problems all get evaluated individually, and what can be done depends on the console and the specific failure. We are not going to promise a repair before we have looked at it, and if yours is not worth fixing we will tell you that.

What happens if you find more damage inside?

We stop and contact you. Liquid damage, cracked boards and previous repair attempts change what a job involves, and sometimes they change whether it makes sense at all. You get the full picture and you decide what happens next before any additional work is done.

Get Your Console Looked At

Tell us the console model and what it is doing, and we will let you know what the next step looks like. Appointments are available seven days a week, 9:00AM to 9:00PM.
